Client:

Les Mines Opinaca

Location:

Québec, Canada

Duration:

8 Years, Ongoing

Scope of Work:

Shaft Sinking
Mine Development
Underground Construction
Raiseboring
Mechanized Raise Mining

The scope of work at Éléonore Mine has included designing and building exploration and production shafts, lateral development and raiseboring.

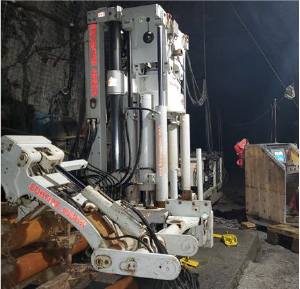

Noteworthy achievements for this project includes 110 holes in 1 year, using a Redbore 40-SDR raise drill in 2021.

Labour, supervision and shaft sinking equipment were provided for the sinking of the 7 m diameter x 725 m deep exploration shaft. The shaft was concrete-lined and equipped with steel guides, two skips and one Maryann.

The production shaft, 7 m diameter x 1,500 m deep, was sunk from 2011 to 2015 and required the excavation of six stations, the deepest of which was at the 1,400 m level.

Redpath also provided engineering services for the design and engineering of the sinking plant, excluding hoists. All work associated to the sinking setup of the Éléonore production shaft was directed by Redpath, and was followed by mine production.

;

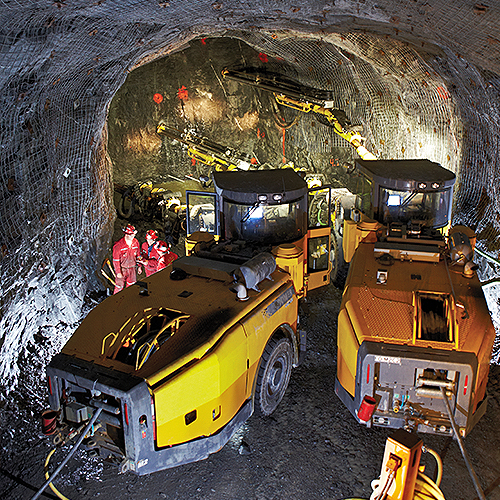

Remote Location

800 km north of Montréal

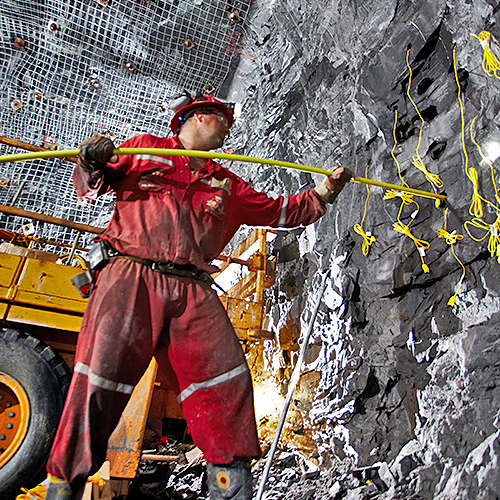

2 SHAFTS
725 m and
1,500 m

x 7 m DIAMETER FOR
EXPLORATION AND
PRODUCTION

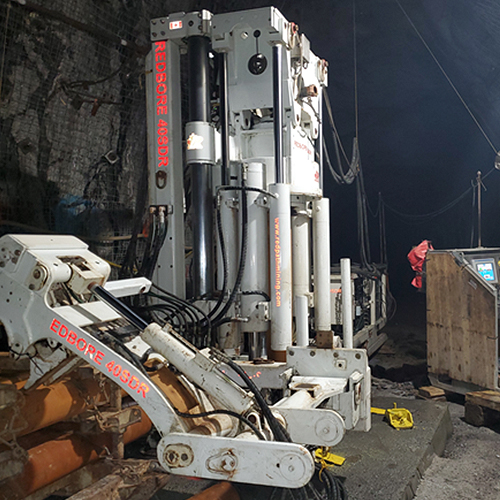

110 HOLES

IN ONE YEAR SLOT PROGRAM
using a Redbore 40-SDR
